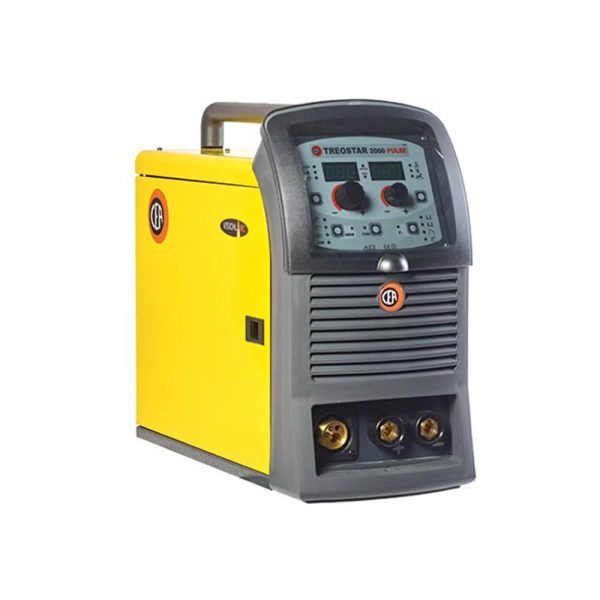

Great flexibility in use and portability are main features of TREOSTAR 2000 PULSE, multiprocess (MIG/MAG, MMA, TIG “Lift”, PULSE and DUAL PULSE) synergic inverter equipment.
They offer high quality welding characteristics on all materials and mostly on stainless steel, aluminium and zinc coated steel, by really minimizing any reworking job due to spatters.
Innovative, versatile, light, easy-to-carry and user friendly, TREOSTAR 2000 PULSE equipment, because of their very high technological conception, are absolutely unique in all external and internal maintenance jobs, car body repairs, agriculture and light fabrication works.
vision.ARC is the innovative welding arc control developed by CEA granting a short arc extremely stable and precise in spite of any change of the external conditions. vision.ARC ensures outstanding performances, impossible to be obtained by traditional power sources.
vision.PULSE permits a short arc pulse welding, constantly controlled, by optimizing the results of traditional pulse welding. This enables to reduce the high heat input, typical in pulse welding, with a consequent reduction in distortions, an improvement in the puddle and considerable increase in welding speed too.
Dual Pulse favours a further reduction in the heat transfer to the workpiece by minimizing its deformation and produces premium quality aesthetic beads similar to TIG finishing.
Dual Pulse is extremely useful mostly when welding aluminium and stainless steel.
| Unit of Measurement | Value | |
| Single phase input 50/60 Hz | V (+20% -20%) | 230 |
| Input Power @ I2 Max | kVA | 9,7 |
| Delayed Fuse (l eff) | A | 16 |
| Power Factor / cos φ | 0,64/0,99 | |
| Efficiency Degree | Ø mm | 0,83 |
| Open circuit voltage | V | 60 |
| Current range | A | 10-200 |
| Duty cycle at (40°C) | A 100% | 100 |
| A 60% | 115 | |
| A % | 200(15%) | |
| Wires | Ø mm | 0,6 – 1,2 |
| Coil | Ø mm | 200 max (300 opt.) |
| Standards | EN 60974-1 • EN 60974-5 • EN 60974-10 | |
 |
||
| Protection Class | IP | 23 S |
| Insulation Class | H | |
| Dimensions (L x B x H) | mm | 500 x 220 x 425 |
| Weight | kg | 16 |
