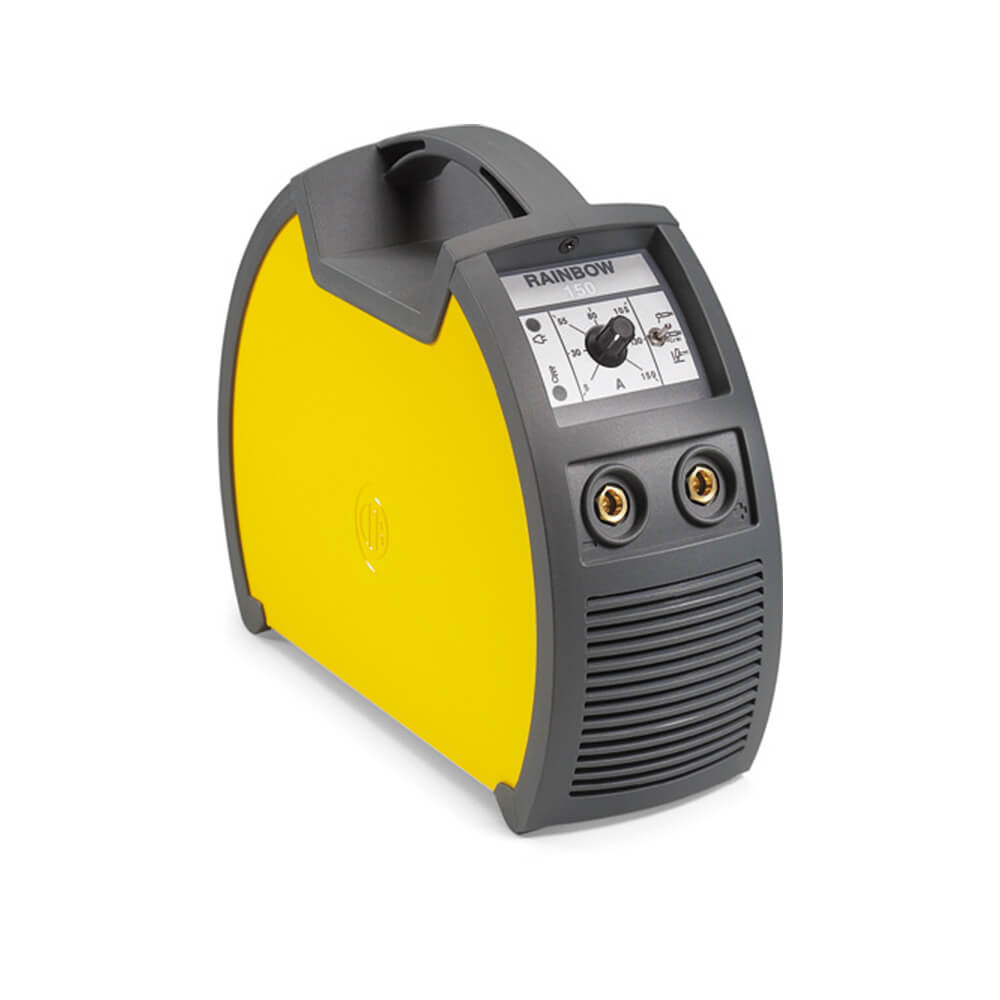

RAINBOW’s represent the latest evolution in inverter technology DC welding equipment.
These powerful 100 kHz power sources are based on latest generation IGBT’s and fitted with a flat transformer.
RAINBOW‘s, with their lightness, reduced size and their excellent characteristics in electrode(MMA) and TIG welding with “lift” mode arc striking, are the most suitable solution for maintenance and light fabrication works.
RAINBOW 153 cell and 183 cell VRD are special versions for cellulosic electrodes.
RAINBOW 183 cell VRD unit are standard fitted with a Voltage Reduction Device to reduce the maximum open-circuit voltage at the output terminals to less than 15 V as long as the arc starts and the selected welding current becomes fully available.
On the contrary, immediately at the end of the welding operation, the power source voltage goes back to a safe level till next welding cycle reoccurs.
These units always provide the users with an additional safety protection when working in all highly hazardous environments such as damp, caustic, salty and wet places.
These machine fully compliant with strict Australian Standards AS16742.-2003 imposed for welding machines used in any place classified as dangerous. All such features make RAINBOW 183 cell VRD ideal for use in mining industry and onsite works.
The voltage monitoring LED changes colour depending on circumstances, i.e:
