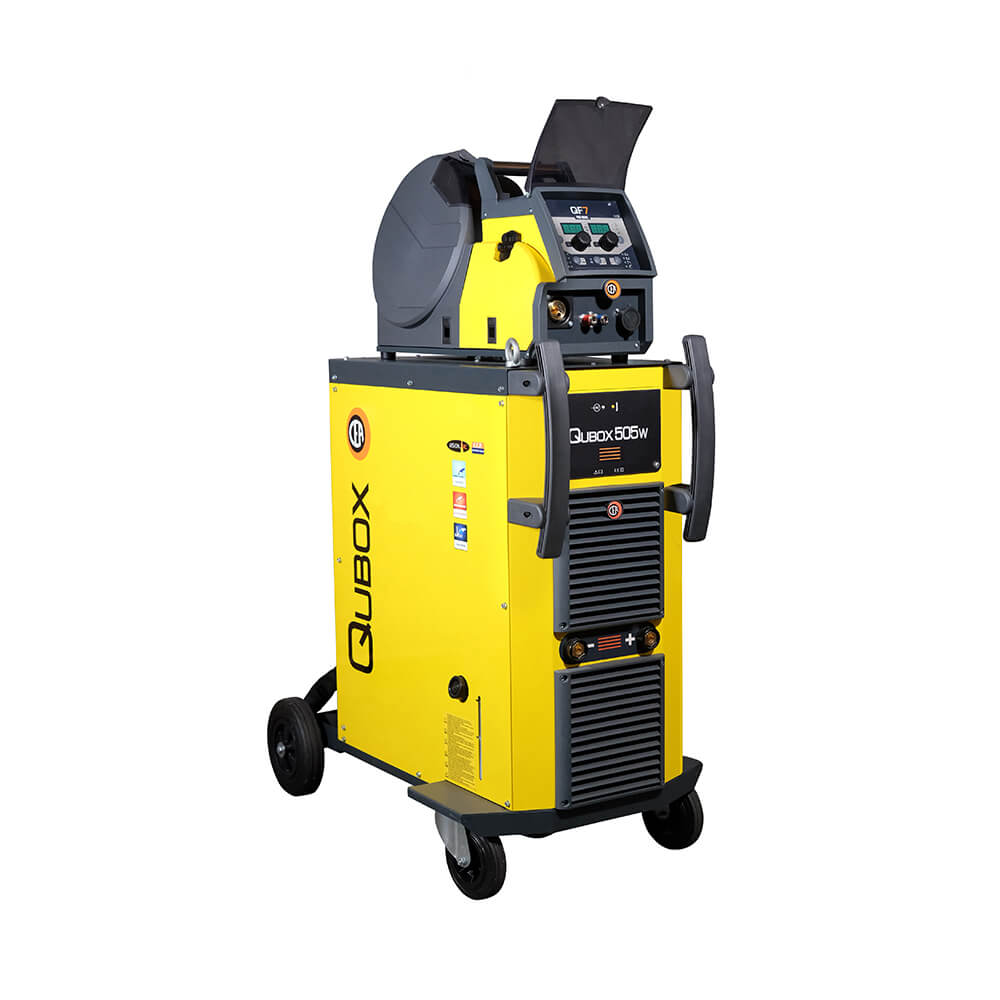

QUBOX series multiprocessor equipment are characterized by a synergic digital control and inverter technology integrated into a sturdy and functional metallic structure, with a separate wire feeder.
Technologically ahead, robust and easy-to-use, they allow high quality welding in MIG-MAG, MMA and TIG with “Lift” mode.
QUBOX equipment also allow less experienced operators to easily adjust all welding parameters in an intuitive way. Once the wished program is selected, the welding control automatically determines the best parameters based on the material type, wire diameter and gas being used, fruit of CEA’s know-how acquired in over 65 years’ experience.
QUBOX W equipment are fitted with integrated water cooling equipment.
QUBOX equipment offer the possibility of utilizing up to 50 m long interconnecting cables from the power source to the feeder, from where all welding parameters can be remote controlled.
The digital control of all parameters is located directly on the QF4/QF7 W PRO DRIVE and the related control panel is duly protected by a cover.
vision.ARC is the innovative welding arc control developed by CEA granting a short arc extremely stable and precise in spite of any change of the external conditions. vision.ARC ensures outstanding performances, impossible to be obtained by traditional power sources.
Standard equipped with analogic-digital I/O, QUBOX power sources can be easily integrated into automated welding equipment without any expensive and sophisticated external interfaces usually necessarily supplied for robotics.
Possibility of working by means of up/down torches to easily adjust main welding parameters at the work place.
| Modal | Unit of Measurement | 400 Value | 400W Value | 500W Value |
| Three phase input 50/60 Hz | V (+20% -20%) | 400 | 400 | 400 |
| Input Power @ I2 Max | kVA | 22 | 22,5 | 29,5 |
| Delayed Fuse (l eff) | A | 32 | 32 | 40 |
| Power Factor / cos φ | 0,70/0,99 | 0,70/0,99 | 0,72/0,99 | |
| Efficiency Degree | Ø mm | 0,88 | 0,88 | 0,89 |
| Open circuit voltage | V | 62 | 62 | 62 |
| Current range | A | 10-400 | 10-400 | 10-500 |
| Duty cycle at (40°C) | A 100% | 350 | 350 | 420 |
| A 60% | 400 | 400 | 500 | |
| Wires | Ø mm | 0,6-1,6 | 0,6-1,6 | 0,6-1,6 |
| Standards | EN 60974-1 • EN 60974-5 • EN 60974-10 | |||
 |
||||
| Protection Class | IP | 23 S | 23 S | 23 S |
| Dimensions (L x B x H) | mm | 1030 x 515 x 950 | 1030 x 515 x 950 | 1030 x 515 x 950 |
| Weight | kg | 70 | 80 | 86 |
