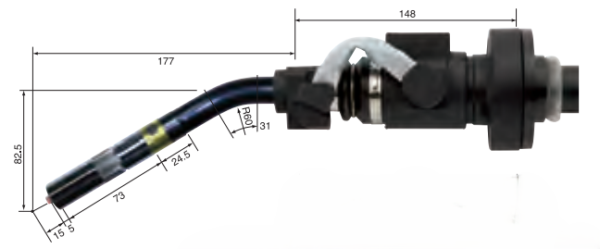

| Torch Model | YMENS-300/308R | |
|---|---|---|
| Rated Current (CO2) | A | 350 |
| Rated Current (MAG) | A | 300 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 0.8 – 1.2 |
| Cooling Method | Air-Cooled | |

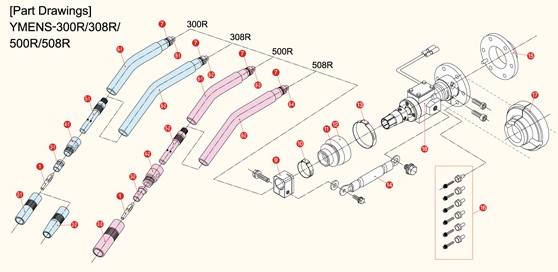

| Reference No. | Part No. | Description |
|---|---|---|
| 1 | 002001 | N Tip 0.9 mm |
| 002002 | N Tip 1.0 mm | |
| 002003 | N Tip 1.2 mm | |
| 002017 | N Tip 1.4 mm | |
| 002004 | N Tip 1.6 mm | |
| 2-1 | 001002 | N Nozzle 16 mm |
| 2-2 | 001003 | N Nozzle 12 mm |
| 2-3 | 001001 | N Nozzle 19 mm |
| 3-1 | 003002 | N Orifice S |
| 3-2 | 003001 | N Orifice L |
| 4-1 | 004002 | N Insulator S |
| 4-2 | 004001 | N Insulator L |
| 5-1 | 016051 | TK-308RR Tip Body |
| 5-2 | 016403 | TK-508RR Tip Body |
| 6-1,7 | YEA0003012 | YMRS-300R/500R Torch Body (w/o Tip Body) |
| 6-2,7 | 3001043 | YMES-308R/508R Torch Body (w/o Tip Body) |
| 7 | Y0000FP10 | O Ring F-P 10 |
| 5-1,6-1,7 | YEA003011 | YMES-300R Torch Body (w/ Tip Body) |
| 5-1,6-2,7 | 30010142 | YMES-308R Torch Body (w/ Tip Body) |
| 5-2,6-1,7 | YEA005011 | YMES-500R Torch Body (w/ Tip Body) |
| 5-2.6-2,7 | YEA005811 | YMES-508R Torch Body (w/ Tip Body) |
| 8-1 | YEA003013 | YMES-300R Inner Tube |
| 8-2 | YEA003812 | YMES-308R Inner Tube |
| 8-3 | YEA005013 | YMES-500R Inner Tube |
| 8-4 | YEA005812 | YMES-508R Inner Tube |
| 1 ~ 8 | YEA003010 | YMES-300R Torch Body Assy |
| YEA003810 | YMES-308R Torch Body Assy | |
| YEA005010 | YMES-500R Torch Body Assy | |
| 1 ~ 8 | YEA005810 | YMES-508R Torch Body Assy |
| 9 | YEA000018 | YSRC Clamp Block |
| 10 | 3001024 | Hose Clamp 286-7R |
| 11 | YM0980009 | YMST-9800-09 Ring |
| 12 | YM0980012 | YMST-9800-12 Rubber Boot |
| 13 | 3001025 | Hose Clamp 455-7R |
| 14 | 3001023 | SRC Jumper Cable |
| 15 | YEA000014 | YME Insulation Spacer |
| 16 | YEA000015 | YME Insulation Sleeve (with 6 sets of screws) |
| 17 | YEA000017 | YME Insulation Cover S |
| 9 ~ 18 | YEA000020 | T-Axis Unit Type S |

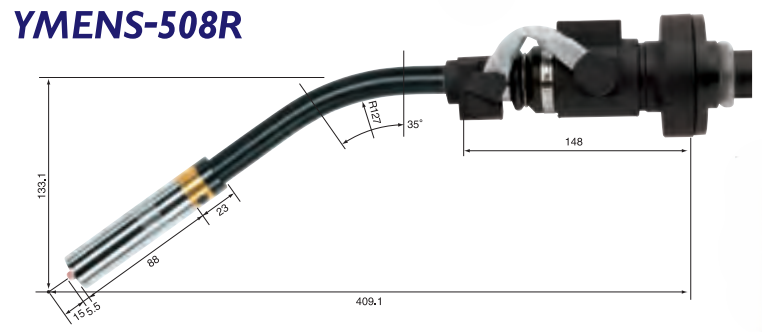

| Torch Model | YMENS-500/508R | |
|---|---|---|
| Rated Current (CO2) | A | 500 |
| Rated Current (MAG) | A | 430 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 1.2 – 1.6 |
| Cooling Method | Air-Cooled | |

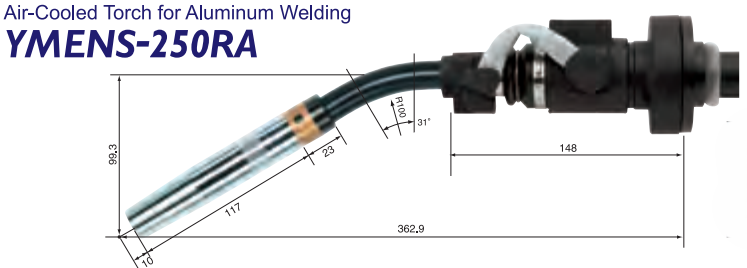

| Torch Model | YMENS-250R | |
|---|---|---|
| Rated Current (MAG) | A | 250 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 1.0 – 1.2 |
| Cooling Method | Air-Cooled | |
| Part No. | Description |
|---|---|
| YEA003810 | YMENS-308RRTorch Body Assy |
| YB0611170 | YMENS-308ARTorch Body Assy (+100) |
| YB0307160 | YMENS-308ARTorch Body Assy (+150) |
| Torch Model | YMENS-500R | |
|---|---|---|
| Rated Current (CO) A | A | 500 |
| Rated Current (MAG) | A | 430 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 1.21.6 |
| Cooling Method | Air Cooled | |

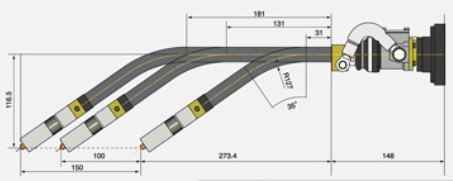

The torch body (straight section) of the YMENS-308RR is available in various lengths as shown in the drawing. We also accept special orders for fabricating original torch bodies in different lengths of your choice.
| Part No. | Description |
|---|---|
| YEA003810 | YMENS-308RRTorch Body Assy |
| YB0611170 | YMENS-308RRTorch Body Assy (+100) |
| YB0307160 | YMENS-308ARTorch Body Assy (+150) |
