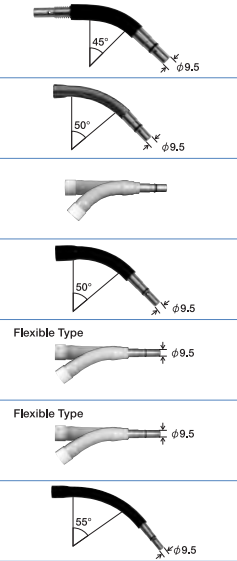

Replacement Parts for D-Type : Torch Body for WTCX Series / WT Series

Current	Appearance	Tokin Part No.	D Part No.	D Model No.
180A ~ 200A		023487 Torch Body Only	U5020C00 U4186B00	WT1800 WT2000 WTCX1800 WTCX2000
350A (Low Duty Cycle)		0234890 Torch Body Only	U5344B00	WT3500 WTCX-3504
350A Flexible Type (Low Duty Cycle)		0234180 Torch Body Only	U5339K00	WT3500F WTCFX-3504
350A (High Duty Cycle)		0234180 Torch Body Only	U5347B00 U4167B00	WT3510 WTCX-3503
350A Flexible Type (high Duty Cycle)		0234290 Torch Body Only	U5339L00 K4945B00	WT3510F WTCFX-3503
450A Flexible Type		0234290 Torch Body Only	U5339B00 K4945B00	WT3520F WTCFX-4301
500A		0234850 Torch Body Only	U5353B00 U4173B00	WT5000 WTCX-5002

Replacement Parts for D-Type : Tip Body For WTCX Series/WT Series

Current	Appearance	Tokin Part No.	D Part No.	D Model No.
350A		023461	U4170G03	WT3500 WTCX-3504
350A 450A		023462	U4167G03	WT3510 WTCX-3503
500A		023463	U4173G03 U4173G21	WT5000 WTCX-5002
Flexible		023464	K4945C01	WT3500F WT3510F WT3520F WTCFX-3504 WTCFX-3503 WTCFX-4301

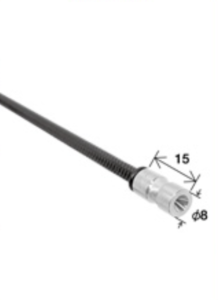

Replacement Parts for D-Type : Liner for WTCX Series / WT Series

Current	Appearance	Tokin Part No.	Torch Cable Length	Liner Length	D Part No.	D Model No.
250A 350A		023443	3m	3400	U4186G01	WT1800 WT2000 WT3500 WT3510 WTC(M)X-2001 WTC(M,L)X-3504 WTC(M,L)X-3503
		023471	4.5m	4900	U4170H02
		023445	6m	6400	U4535G01
500A		023446	3m	3400	U4172H01	WT5000 WTC(M,L)X-5002
		023472	4.5m	4900	U4173G004
		023448	6m	6400	U4537G01

Replacement Parts for D-Type : Torch Body For WTC Series

Current	Appearance	Tokin Part No.	D Part No.	D Model No.
200A		023421	U2273B00	WTCF-3501
350A		0234220	U3286B00	WTCF-3504
350A		0234230	U2695B00	WTCF-3503
500A		0234240	U2774B00	WTCF-5002
350A		0234250	K1885B00	WTCF-3503

Replacement Parts for D-Type : TIP Body For WTC Series

Current	Appearance	Tokin Part No.	D Part No	D Model No
350A		023466	U3286J01	WTC-3504
350A 500A		023367	U2437H07	WTC-3503 WTC-5002

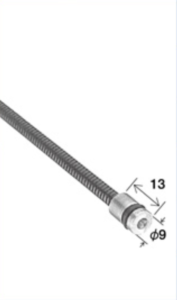

Replacement Parts for D-Type : Liner for WTC Series

Current	Appearance	Tokin Part No.	Wire Size	Torch Cable Length	Liner Length	D Part No.	D Model No.
200A 350A		023435	0.9 ~ 1.2	3m	3400	U2773E01 U2627M01	WTC(M)-2001 WTC(M,L)-3504 WTC(M,L)-3503 WTC(M,L)F-3503
		023436	0.9 ~ 1.2	4m	4400	U2945E01 U2946J01
		023437	0.9 ~ 1.2	6m	6400	U2626M01
500A		023438	1.2 ~ 1.6	3m	3400	U2774E02	WTC(M,L)-5002
		023439	1.2 ~ 1.6	4m	4400	U2954E02
		023440	1.2 ~ 1.6	6m	6400	U2626M02
