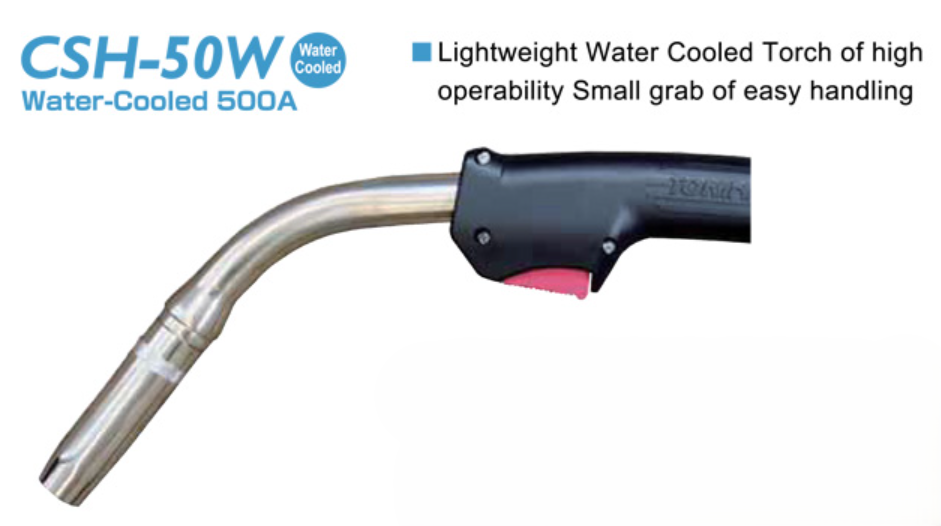

| Torch Model | CSH-50W | |
|---|---|---|
| Rated Current | A | 500 |
| Duty Cycle | %(CO2) | 100 |
| %(MAG) | 60 | |
| %(MIG) | – | |
| Applicable Wire Diameter | mm | (1.2, 1.4,) 1.6 |
| Cable Length | m | 3/4/5 |
| Cooling Method | Water-Cooled | |
| Total Weight | kg | 3 |

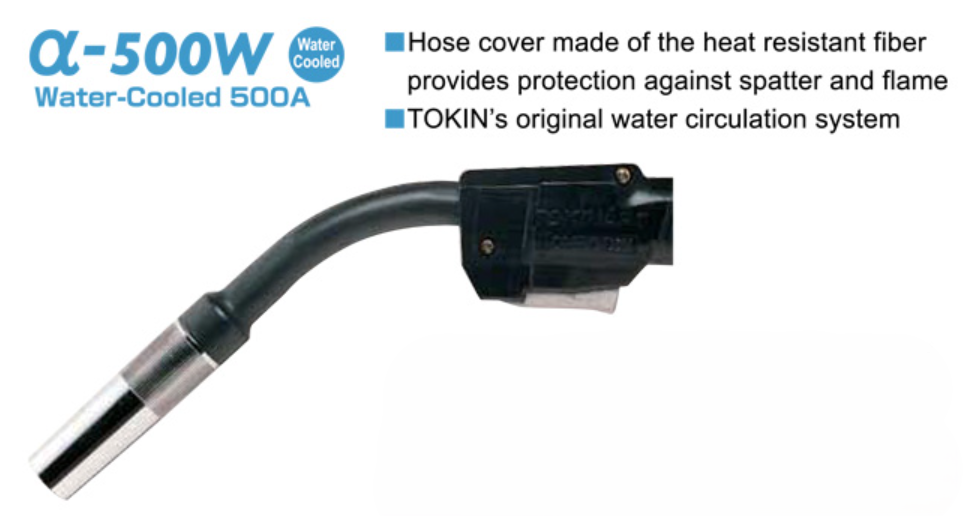

| Torch Model | 𝛼-500W | |
|---|---|---|
| Rated Current | A | 500 |
| Duty Cycle | %(CO2) | 100 |
| %(MAG) | 60 | |
| %(MIG) | – | |
| Applicable Wire Diameter | mm | (1.2, 1.4,) 1.6 |
| Cable Length | m | 3/4/5 |
| Cooling Method | Water-Cooled | |
| Total Weight | kg | 3 |
CSH-50W, 𝛼-500W – Connection to Wire Feeders

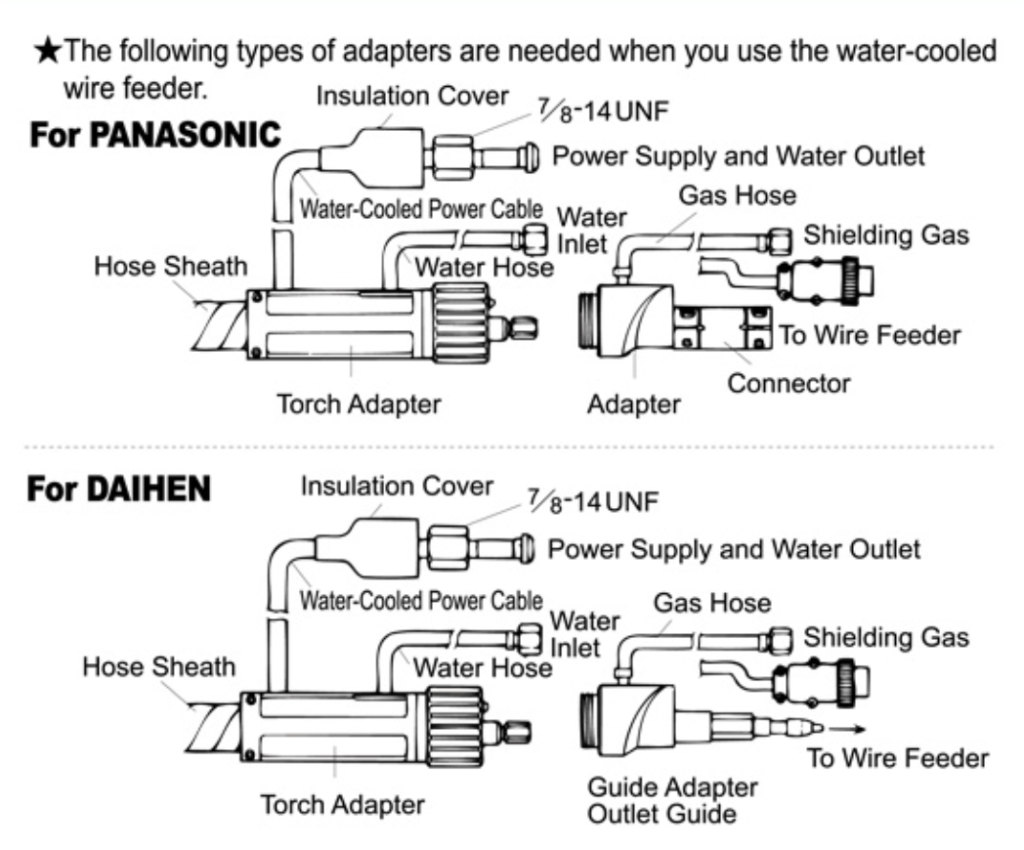

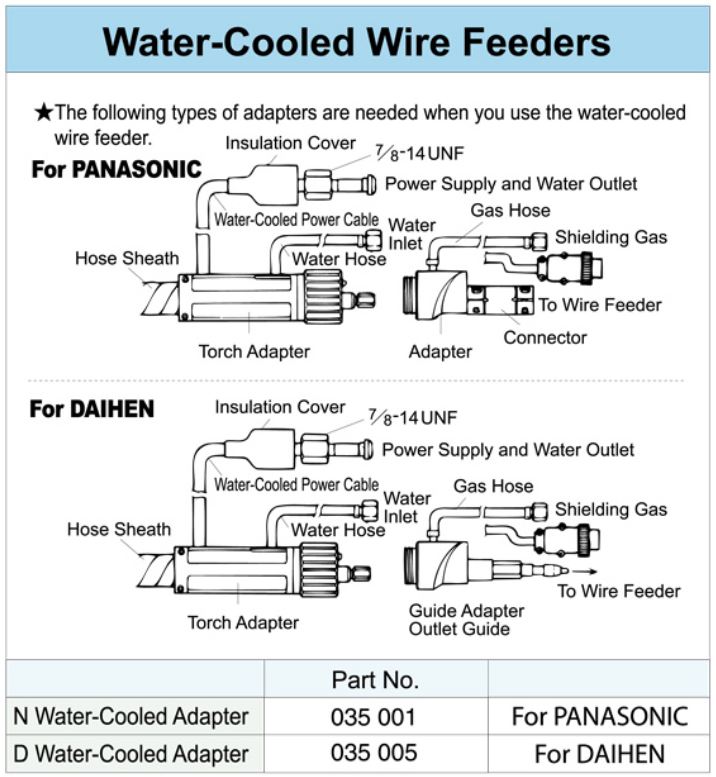

Water-Cooled Wire Feeders
| Part No. | ||
|---|---|---|
| N Water-Cooled Adapter | 035 001 | For PANASONIC |
| D Water-Cooled Adapter | 035 005 | For DAIHEN |

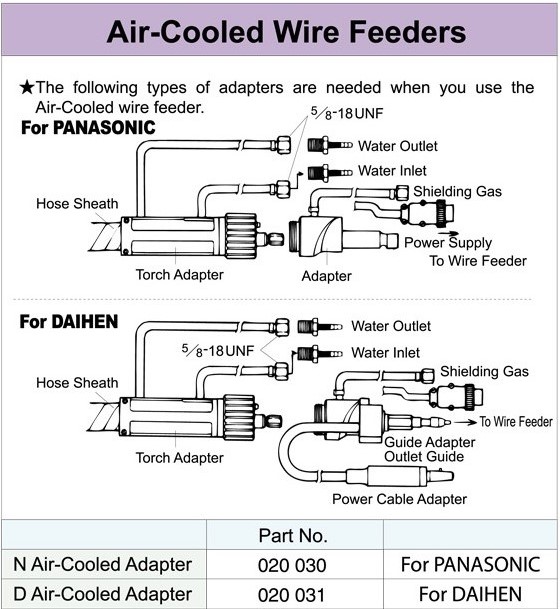

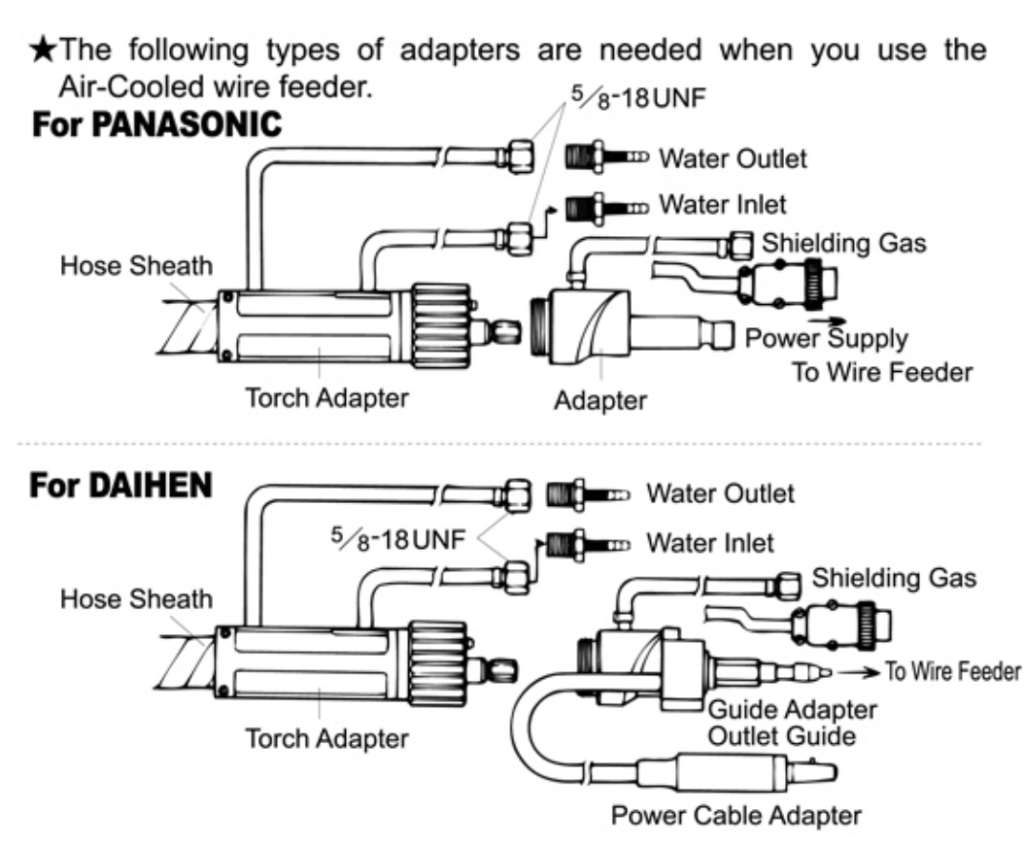

Air-Cooled Wire Feeders
| Part No. | ||
|---|---|---|
| N Water-Cooled Adapter | 020 030 | For PANASONIC |
| D Water-Cooled Adapter | 020 031 | For DAIHEN |
