MATRIX X HF are high efficiency TIG HF inverter power sources, studied to satisfy the most advance and sophisticate request in the TIG welding market.
MATRIX X HF are standard equipped with the new X VISION interface, simple and complete, for the total control and monitoring of all the welding parameters.
Their excellent characteristics, coupled with the high technology of the digital control, allow a perfect stability of the welding arc, granting high performance TIG welding in the more sophisticated industrial applications and maintenance.
The single phase MATRIX X HF, thanks to the PFC, optimizes the amount of energy consumption by allowing the use of this powerful power source, without problems, with 16 A fuse mains and power generator sets.

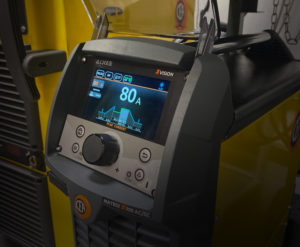

X vision control display with “ONE CLICK KNOB” encoder for the pre-setting and monitoring of all the welding parameters:
Innovative spot welding device to achieve precise and safe joining with a minimal thermal input. “Multi-coldTACK” function grants cold spotting in a rapid sequence, thus further widening the benefits of the single spot. Thanks to “Perfect-Point” function, coldTACK allows to obtain the most precise spot positioning.
RCT is the acronyms of Running coldTACK; indeed, the TIG RCT process allows to benefit of all the coldTACK advantages, by repeating the single coldTACK point in a continuous way, in order to achieve a cold and perfect welding seam. Using TIG RCT the welding seam is much colder in comparison to the one achievable with Pulse TIG and it represents the ideal solution to weld thin materials with a very low heat transfer. TIG RCT is a direct current process not available in AC welding.
VRD device reduces the open circuit voltage to values below 12 V, by enabling the use of the machine in highly hazardous environments for the operator’s maximum safety.
PFC – Power Factor Correction (Cos f=1)The wave shape of the current drawn from the mains is made sinusoidal by the PFC device with a consequent total lack of harmonic disturbances in the mains and consumption optimization, which enables to utilize the power source at full range on a 16 A fuse.
