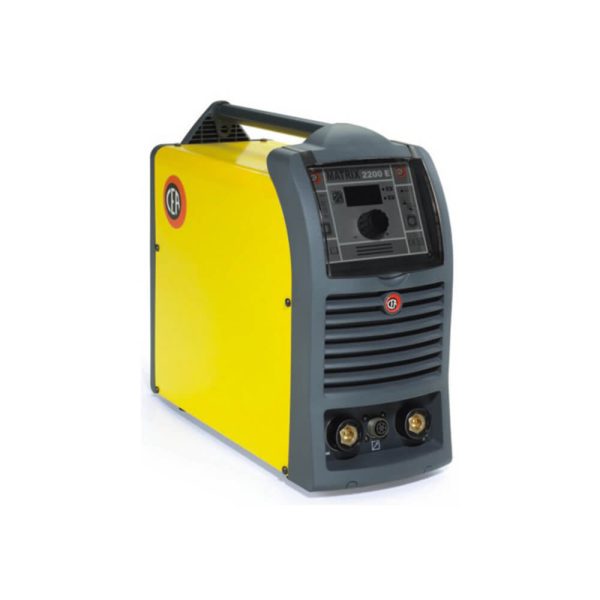

Powerful, compact and lightweight MATRIX 2200 E is the most innovative, high-performing and technologically ahead single phase power source ever developed for electrode welding.
Its PFC Power Factor Correction device optimises the amount of energy consumption by allowing its use with 16A fuse mains, thus becoming the ideal choice for all qualified welding applications and maintenance jobs, whenever power and portability are needed.
Designed according to the very latest IGBT based inverter technology, thanks to its digital welding control, MATRIX 2200 E ensures an extraordinary perfect stability of the welding parameters to obtain high quality joints with all types of electrodes, cellulosic included, and in TIG with lift” mode arc striking.
VRD device reduces the open circuit voltage to values below 15 V, by enabling the use of the machine in highly hazardous environments for the operator’s maximum safety.
The wave shape of the current drawn from the mains is made sinusoidal by the PFC device with a consequent total lack of harmonic disturbances in the mains and consumption optimization, which enables to utilize the power source at full range on a 16 A fuse. The PFC circuit gives the machine a wider protection against mains voltage fluctuations, by also making it safer whenever being operated by power generator sets.
| Unit of Measurement | Value | |
| Single phase input 50/60 Hz | V (+20% -20%) | 230 |
| Input Power @ I2 Max | kVA | 6,2 |
| Delayed Fuse (I2 @ 100%) | A | 16 |
| Power Factor / cos φ | 0,99 / 0,99 | |
| Efficiency Degree | Ø mm | 0,85 |
| Open circuit voltage | V | 100 |
| Current range | A | 5-180 |
| Duty cycle at (40°C) | A 100% | 120 |
| A 60% | 150 | |
| A 35% | 180 | |
| Standards | EN 60974 – 1 • EN 60974 – 10 |
|
 |
||
| Protection Class | 23 S | |
| Insulation Class | F | |
| Dimensions (L x B x H) | mm | 430 x 185 x 390 |
| Weight | kg | 12 |
