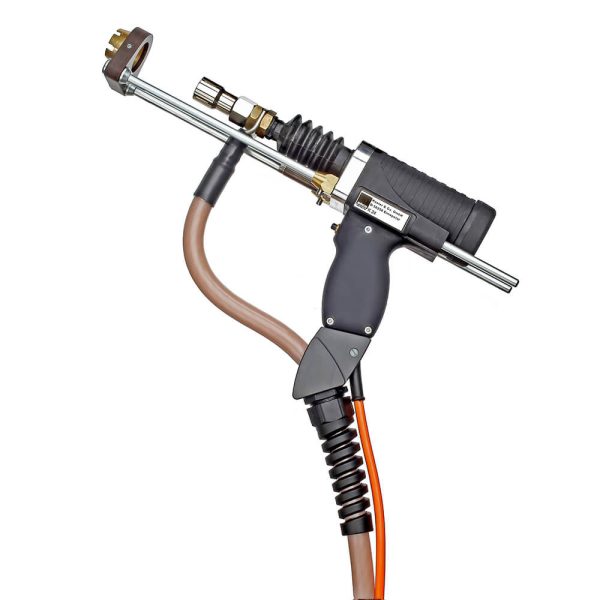

The CLASSIC K 24 is a robust stud welding gun with a weldable stud range of 3-22 mm. It contains an adjustable plunge damper, the robust housing promises safe welding processes and was designed for welding on building sites.
| Value | |
| Stud welding with ceramic ferrule, weldable stud range Ø (mm) | 13–22 |
| Standard support with …legs | 2 |
| Lifting range from … to … | 2,5–6 |
| Welding cable (m/mm² | 2/95 |
| Control cable (m/mm²) | 2/4 x 1,0 |
| Length (excluding chuck) (mm) | 250 |
| Body Ø (mm) | approx. 60 |
| Height (including handle) (mm) | 220 |
| Weight (approx. kg) excluding cables | approx. 1,4 |
