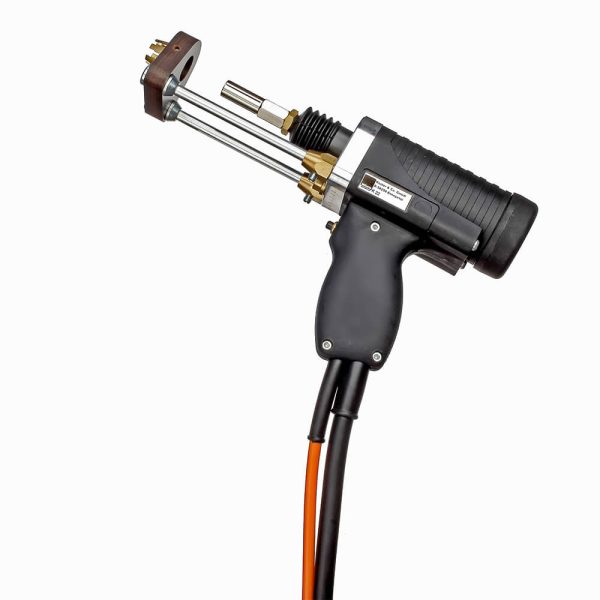

The CLASSIC K 22 is a robust stud welding gun with a weldable stud range of 4-14 mm. Its resistant body promises safe welding processes and was designed for welding on building sites.
| Value | |
| Stud welding with ceramic ferrule, weldable stud range Ø (mm) | 4–14 |
| Short cycle stud welding, weldable stud range Ø (mm) | 6–12 |
| Stud welding with shielding gas, weldable stud range Ø (mm) | 3–16 |
| Standard support with …legs | 2 |
| Lifting range from … to … | 1–4,5 |
| Welding cable (m/mm² | 2/50 |
| Control cable (m/mm²) | 2/4 x 1,0 |
| Length (excluding chuck) (mm) | 175 |
| Body Ø (mm) | approx. 60 |
| Height (including handle) (mm) | 165 |
| Weight (approx. kg) excluding cables | approx. 1,3 |
